| Specifications | Model Numbers | ||||
| Electric Warming Cabinet | |||||
| Dimensions (WxDxH) (inches) | 22.83 x 33.27 x 67.64 | ||||
| Capacity (Full Sheet Pans) | 36 | ||||
| Electrical Requirements (Amps) | 12.5 | ||||
| Electrical Requirements (Watts) | 1500 | ||||
| Power Supply (v/Hz/Ph) | 120/60/1 | ||||
| Plug | NEMA 5-15P | ||||

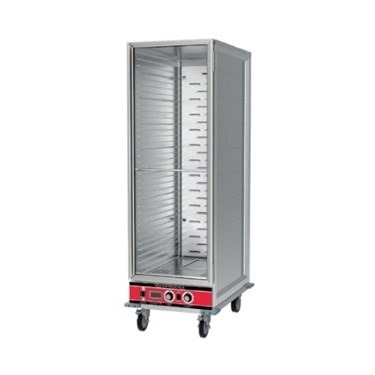

Warming Cabinet
Electric Heater Proofer Cabinet
Full size sheet pan upright electric glass door proofer cabinet
Dimensions (WxDxH) in
|
22.83 x 33.27 x 67.64 |
Electrical Req. (Amps)
|
12.5 |
Electrical Req. (Watts)
|
1500 |
|
Power Supply (v/Hz/Ph)
|
120/60/1 |
Specifications
• Air baffle design and forced air circulation
• Easy to read LED thermometer
• Insulated door and cabinet with as low as 0.04W m2.K with thickness of 1.2 inch
• Corner bumpers prevent unit from impact
• Removable control drawer for easy cleaning and maintenance
• Four (4) 3” casters, two (2) with brakes, for mobility
• Holds up to 36 full size sheet pans;
1 1/2” of clearance between slides
• Insulated HPIC/HPIS models offer energy savings
• Supplied with 6.3’ NEMA 5-15P cord with cable cover to provide additional electrical protection and safety
• Available in insulated and non-insulated models in various door options upon request
