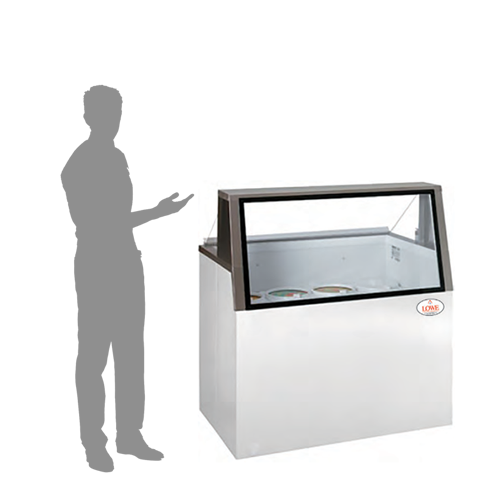

DC8

Ice Cream Dipping Cabinet

8 Well Frozen Ice Cream Dipping Cabinet

Dimensions (WxDxH) in	47 3/4 x 27 3/4 x 50
Electrical Req. (Amps)	20
Electrical Req. (Watts)	2000
Temperature Range	(5 - -5°F) or (-15 - -21°C)

Specifications	Model Numbers
	DC8
Dimensions (WxDxH) (inches)	47 3/4 x 27 3/4 x 50
Condensing unit size (HP)	1/2
Refrigerant	R134A
Rear door	13¼” h x 16¼” w
Power Supply v/Hz/Ph	120/60/1
Electrical Requirements (Amps)	20
Electrical Requirements (Watts)	2000
Deck fans	Yes
Temperature Range	(5 - -5°F) or (-15 - -21°C)

Plug - each unit requires a single dedicated power supply; 24 hour power if keeping product in unit overnight

• Attractive, contemporary design
• 24 gauge painted textured interior and exterior
• Stainless steel serving deck, top and attached superstructure
• Independent on/off compressor and light switch
• Brilliant, interior fluorescent lighting
• Tempered plate glass viewing window
• Holds 9 ½ diameter, 3 gallon cans
• Top and side lid wiper gaskets
• 9 ft power cord
• 8 dipping wells
• Rear frozen storage
• Heavy-duty epoxy-coated wire can support racks
• Hinged, high-tensile, transparent acrylic dipping compartment lids with full length handle
