| Specifications | Model Numbers | ||||
| B1 | |||||
| Dimensions (WxDxH) (inches) | 52.37x43x52.50 | ||||
| Width without end walls (inches) | 47 | ||||
| Display Area (ft²) | 11 | ||||
| Storage capacity (ft³) | 5.5 | ||||
| Storage area width (inches) | 47 | ||||
| Storage area depth (inches) | 20 | ||||
| Storage area height (inches) | 10 | ||||
| Condensing unit size (HP) | 0.5 | ||||
| Refrigerant | R404 | ||||
| Power Supply v/Hz/Ph | 120/60/1 | ||||
| Electrical Requirements (Amps) | 20 | ||||
| Electrical Requirements (Watts) | 2000 | ||||
| Deck fans | 1 | ||||
| Temperature Range (°F) or (°C) | 34 - 42 or +1 - +6 | ||||

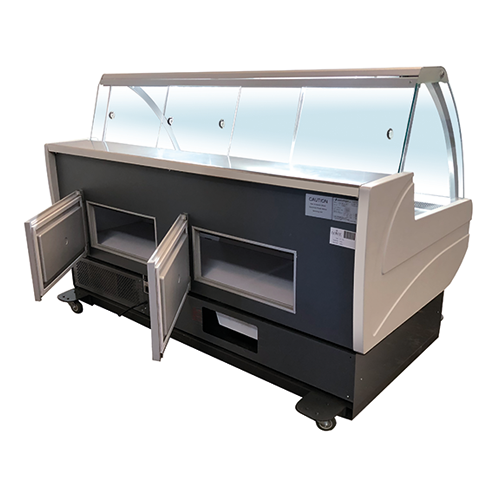

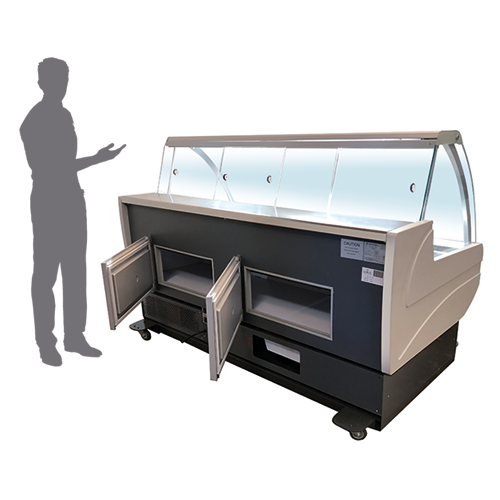

B1
Serve-Over Counter
4ft Curved Glass Serve Over Display Refrigeration Unit
Dimensions (WxDxH) in
|
52.37x43x52.50 |
Electrical Req. (Amps)
|
20 |
Display Area ft²
|
11 |
Temperature Range (°F) or (°C)
|
(34 - 42) or (+1 - +6) |
Specifications
Plug - each unit requires a single dedicated power supply; 24 hour power if keeping product in unit overnight
• Automatic defrost
• Heater pan evaporation (no plumbing required)
• Built in preparation counter
• Castors supplied with case
• Easy to clean surfaces
• Forced air cooling
• Fully self contained unit
• Illuminated stainless steel display deck
• Rear access to display deck for server
• Refrigerated under-storage (accessed through rear doors with magnetic gaskets)
• Simple plug in operation
• Top hinged glass with hydraulic arm support for curved glass unit
• ABS foamed end walls
• Ice insert for fish display available upon request
* Display shelf available upon request (NOT refrigerated)
