| Specifications | Model Numbers | ||||
| Modular Genova | |||||
| LED Lighting | Vertical Lighting, shelf lighting optional | ||||
| Packout | 2 door: 38 cubic ft / 3 door: 57 cubic ft / 4 door: 76 cubic ft (19 cubic ft per door) | ||||
| Display Area | 11.25 sq ft per door | ||||
| # of shelves included | 5 shelves included per door, with usable bottom level for a total of 6 levels per door | ||||
| Weight of case | 1,433 lbs | ||||
| Refrigerant charge | 145 grams | ||||
| Refrigerant | R290 | ||||
| # of systems | 1 | ||||
| Shelf Depth | 19.75” | ||||
| Interior Dims | 19.75” D x 67.59” H | ||||
| Exterior Dims (no end panels) | 2 door: 49.2” / 3 door: 73.8” / 4 door: 98.4” W x 34.9” D x 85.1” H | ||||
| Min temp | 30.2 °F | ||||
| Max temp | 41 °F | ||||
| Daily energy use | 9.8 Kwh/Day | ||||
| Condenser type | Air Cooled Standard/ water cooled optional | ||||
| Defrost Method | compressor stop/electric defrost | ||||
| Condensate evaporation method | hot gas evaporation system | ||||
| Total heat rejection | 2965 BTU/hr | ||||
| Voltage | 115v/60Hz | ||||
| Phases | 2 phase | ||||
| Amps | 6.78 | ||||
| Plug Type | NEMA 5-20P | ||||
| Plug Length | 9.84 ft | ||||
| Decibel level | <55 dB within 3.5 ft of case | ||||
Modular Genova
Modular Genova

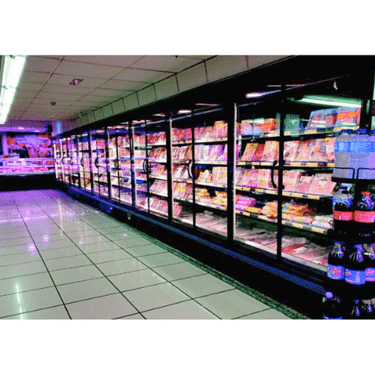

Modular medium temp door case
Dimensions (WxDxH) in
|
2 door: 49.2” / 3 door: 73.8” / 4 door: 98.4” W x 34.9” D x 85.1” H |
Electrical Req. (Amps)
|
6.78 |
Interior dimensions (inches)
|
19.75” D x 67.59” H |
Temperature Range (°F)
|
30.2 °F to 41 °F |
Specifications
• Modular case system allows cases to be joined together with no dividers for seamless, remote case-like runs for optimal merchandising
• r290 Refrigerant
• Factory charged and sealed refrigeration system
• Black Interior/Black Exterior Standard
• Temp range: 30.2 °F to 41 °F
• Certifications: UL, DOE, NSF7 conducted with UL certification
• Shelves included and dimensions: 5 shelves per door with usable bottom level
• Leveling system: adjustable feet for leveling
